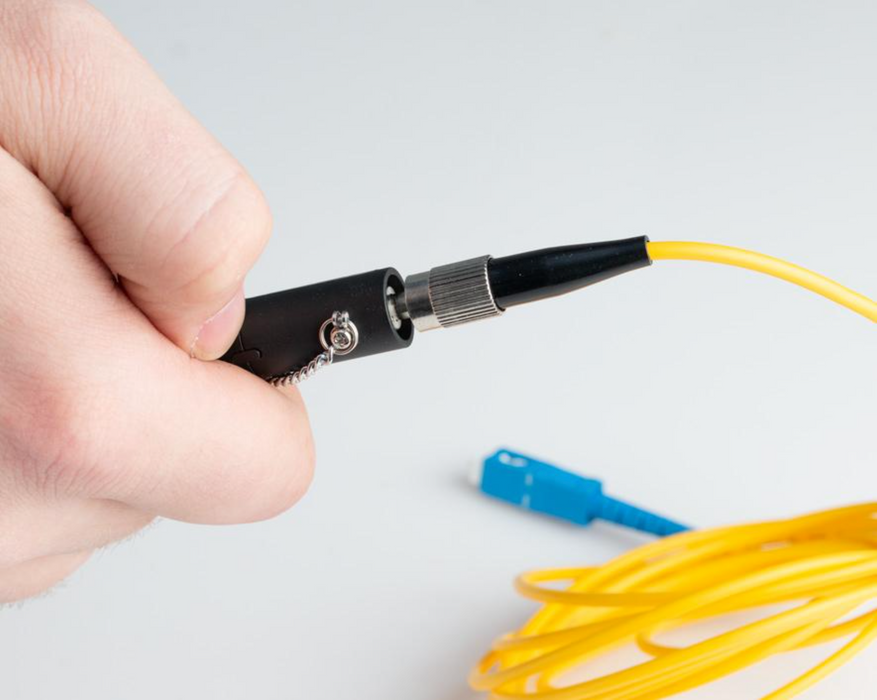

The Jonard Tools Visual Fault Locator Kit is used for checking the defects of a fibre cable. Designed to detect fiber breakpoints, fiber leaks, poor connections, and stress points, this visual fault locator is perfect for field personnel detecting faults in fiber optic cables.
Kit Includes:
- Visual Fault Locator
- FC to LC Adapter for VFL-25
Features:
- Includes adapter for 1.25mm LC connectors
- 650 nm Class IIIA laser diode identifies faults in single and multi-mode fiber up to 3 miles long
- Universal connector accommodates 2.5mm ferruled connectors, such as FC, SC, and ST connectors
- Has three different modes: Continuous-wave, pulsing, and a slower pulsing mode
- Works in OTDR dead zones and is used for end-to-end visual fiber identification
- Light and portable pen-style design is perfect for on the go use
- 60 hours of battery life powered by two AAA batteries (included)
Specifications:
Fiber Connector |
FC, LC, SC, ST |
---|---|
Light Source |
Class IIIA Laser Diode |
Distance |
Up to 5km (3.10 miles) |
Wavelength |
650nm |
Storage Temperature |
-40 Fahrenheit (-40 Celsius) to 185 Fahrenheit (85 Celsius) |
Working Temperature |
-4°F to 140°F (-20°C to 60°C) |
Power |
2 AAA Batteries |
Battery Life |
60 hours |
Weight |
0.16 lbs (72.57g) |
UPC No. |
811490016002 |
